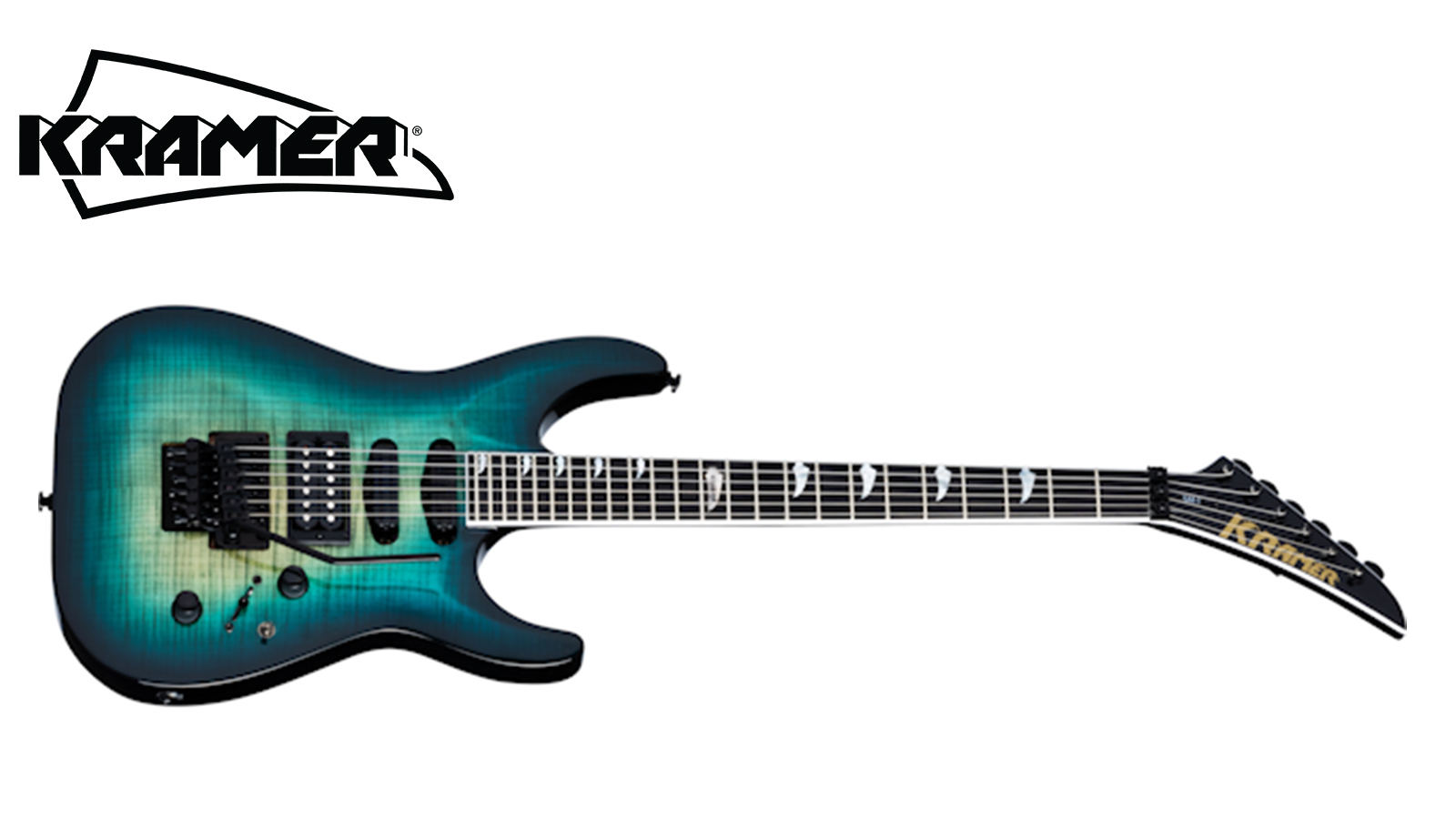

SM-1 Figured Specifications
Body
Body Styles
Double Cut
Body Shape
SM-1
Body Material
Mahogany
Top
AAA Figured Maple Veneer
Body Finish
Gloss
Neck
Profile
Kramer K-Speed SlimTaper C
Scale Length
647.7 mm / 25.5 in
Fingerboard Material
Ebony, White Binding
Fingerboard Radius
320.0 mm / 12.598 in
Fret Count
24
Frets
Jumbo
Nut Material
Floyd Rose R2 Locking Nut; Top Mount
Nut Width
43.0 mm / 1.692 in
Inlays
Kramer Mini Headstocks, 12-fret Engraved Kramer
Joint
Neck-Through Body, Contoured Heel
Hardware
Finish
Black Chrome
Bridge
Floyd Rose 1000 series Tremolo
Tuning Machines
Kramer Black Die Cast
TrussRod
Adjustable
Truss Rod Cover
1 ply Black Bullet, 1 Screw, SM-1 in White
Control Knobs
Black Metal Knurled
Switch Tip
Black
Control Covers
Black
Strap Buttons
2 - Bottom and Upper Horn
Mounting Rings
Black (Bridge Pickup Only)
Electronics
Neck Pickup
Seymour Duncan Cool Rails
Middle Pickup
Seymour Duncan Cool Rails
Bridge Pickup
Seymour Duncan JB
Controls
Master Volume, Master Tone, Mini Toggle (Coil Split for the Bridge Pickup)
Pickup Selector
5-way Selector
Output Jack
1/4"
Miscellaneous
Strings Gauge
.010 .013 .017 .026 .036 .046
Case
Optional Hard Shell Case 940-KRSTCS
In order to continually improve the design, quality and performance of our products and instruments and to make use of the best materials at all times, Kramer reserves the right to change specifications without notice.
